Our Product
RCF Scanner product banner

Our Product

Specification

  • Commercially ready solution available to maintenance operators and suppliers
  • Capable of supervised operation or fully autonomous inspection of pre-programmed routes
  • Robust remote control
  • Fully configurable payload including – Corrugation, EMAT ultrasound inspection and ACFM inspection options
  • ACFM provides high resolution plot of flaw area based on laser profile of rail
  • Two man lift and position onto track
  • Eight hour continuous operation
  • Inspection data integrated with track position data
  • Flexible data formatting and interoperability

Benefits

  • Improved levels of safety due to increased probability of detection of defects
  • A significant targeted reduction in track maintenance costs
  • Increased availability of network due to increased reliability and reduced maintenance downtime
  • Extended asset life time and reduced life cycle costs
  • Reduced requirement for track access for personnel leading to lower risk and increased safety for operators

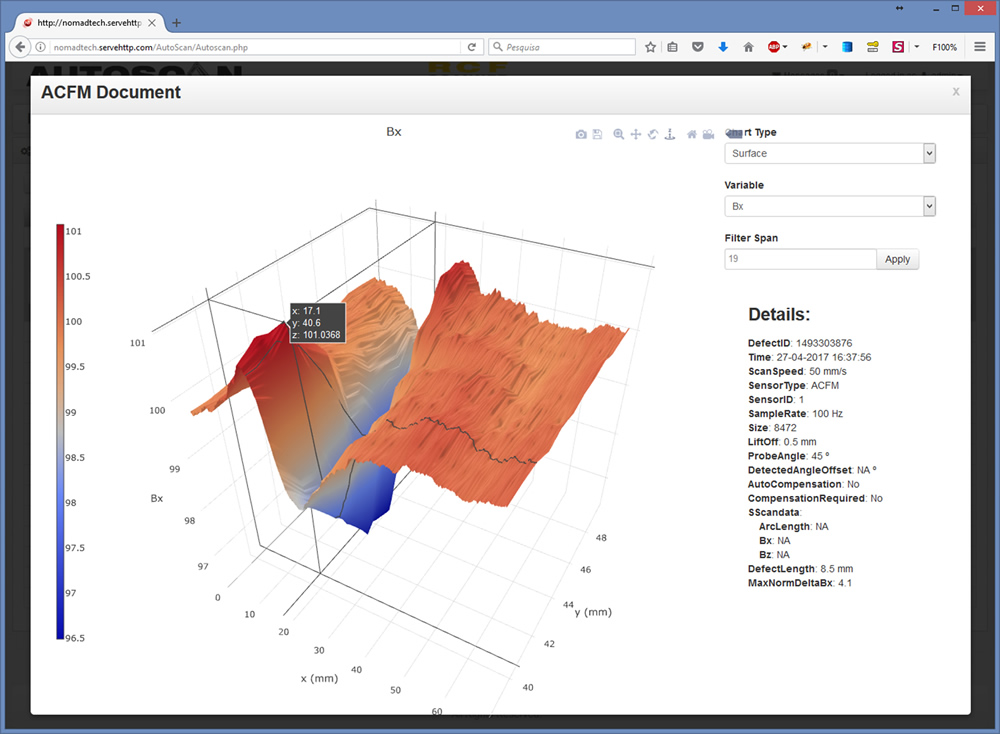

ACFM output configured as a contour plot from robotic scanning
  • ACFM output configured as a contour plot from robotic scanning

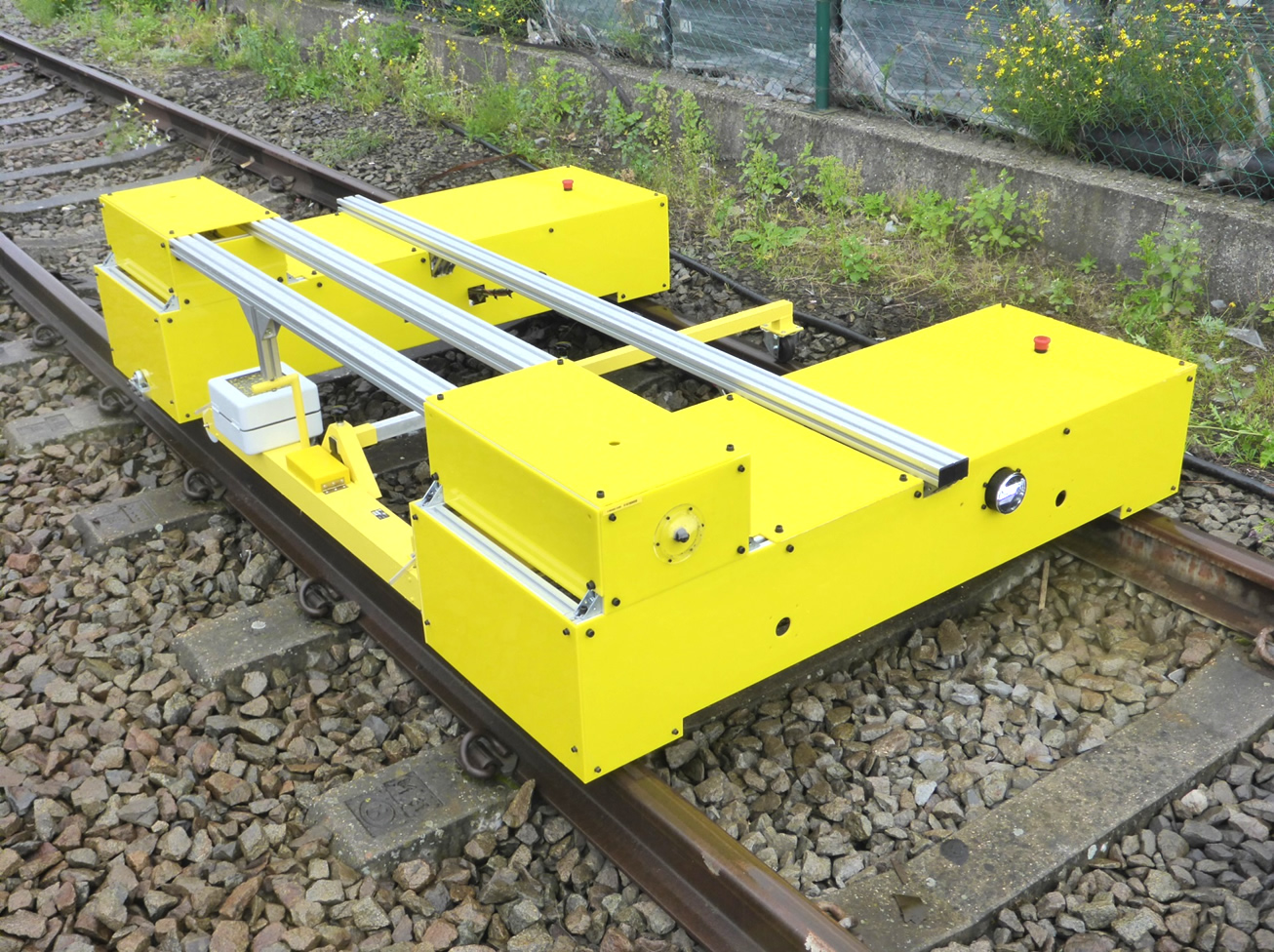

 RCF Scanner system default configuration for rail corrugation detection
  • RCF Scanner system default configuration for rail corrugation detection
[ Zoom ]

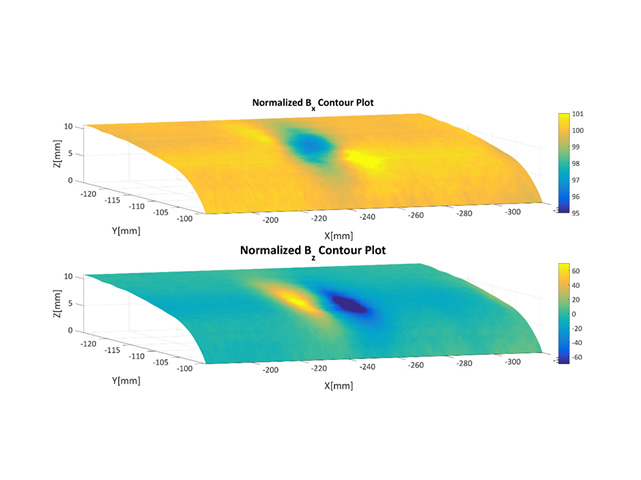

ACFM output configured as a contour plot from robotic scanning figure1
[ Zoom ]
ACFM output configured as a contour plot from robotic scanning figure 2
[ Zoom ]
ACFM output configured as a contour plot from robotic scanning figure

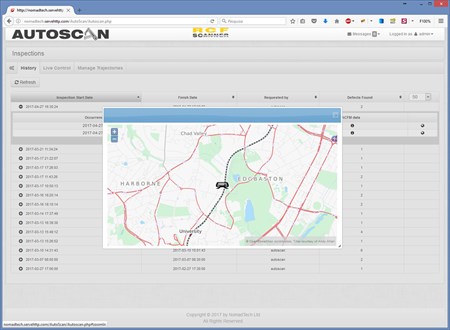

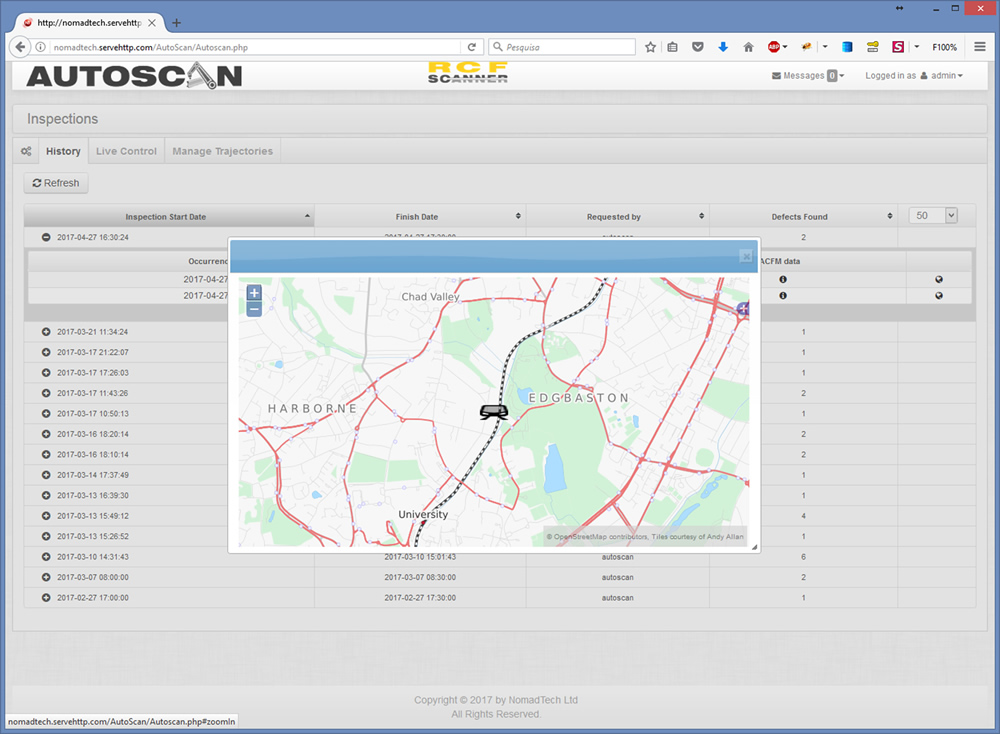

  • Configurable interfaces and data displays
